Description
RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR
This is the all new RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR. This has been Officially Licensed by Miller and is only available from RC4WD and our Dealers.
Miller Motors owner and driver Erik Miller has teamed up with RC4WD, the masters of scale! This collaboration brings expertise and an electrifying experience to the world of scale RC. Using dedicated engineering and racing insight, this model comes crafted to take on multiple terrains. Witness the thrilling results of this collaboration as we introduce this new rock-racing RTR!
Contoured Scale Chassis Set
Molded Lexan Body Panels
Faux Fuel Cell
Scale V8 Crate Engine Housing Assembly
Functional Scale Transmission and Transfer Case
Rock Crawler 2.2" Beadlock Wheels
Grappler 2.2" Scale Tires
Dual Spring Front and Rear Shocks
Miller Motorsports Transfer Case
Ratio: 1.85:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 10 Bearings, Mold Nylon Transfer Case, Hardened Gears
Miller Motorsports Transmission
Ratios: Pinion/Spur 12/14 = 1.16:1
Internal Ratio: 17.4:1
Gears - Wide Steel .8 Mod,2 Speed
Miller Motorsports Axles
Ratio: 10/26 = 2.6:1
Miller Motorsports Racer Chassis
Features: Plastic mold chassis, High Quality Nylon+ Fiberglass
Drive Shafts
Steel Driveshafts, Very Durable High Quality Steel Yokes
Miller Motorsports Racer Wheels
Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black and Chrome)
Hub: 12mm Hex
Width: 21.5mm (0.85")
OD: 47.6mm (1.87")
Miller Motorsports Racer Dimensions
Wheelbase: 354mm (13.94")
Width: 299mm (11.77")
Height: 235mm (9.25")
Ground Clearance: 95mm (3.74")
Final Drive Ratio: 31.93:1
Miller Motorsports Transfer Case
Ratio: 1.85:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 10 Bearings, Mold Nylon Transfer Case, Hardened Gears
Miller Motorsports Transmission
Ratios: Pinion/Spur 12/14 = 1.16:1
Internal Ratio: 17.4:1
Gears - Wide Steel .8 Mod,2 Speed
Miller Motorsports Axles
Ratio: 10/26 = 2.6:1
Miller Motorsports Racer Chassis
Features: Plastic mold chassis, High Quality Nylon+ Fiberglass
Drive Shafts
Steel Driveshafts, Very Durable High Quality Steel Yokes
Miller Motorsports Racer Wheels
Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black and Chrome)
Hub: 12mm Hex
Width: 21.5mm (0.85")
OD: 47.6mm (1.87")
Miller Motorsports Racer Dimensions
Wheelbase: 354mm (13.94")
Width: 299mm (11.77")
Height: 235mm (9.25")
Ground Clearance: 95mm (3.74")
Final Drive Ratio: 31.93:1

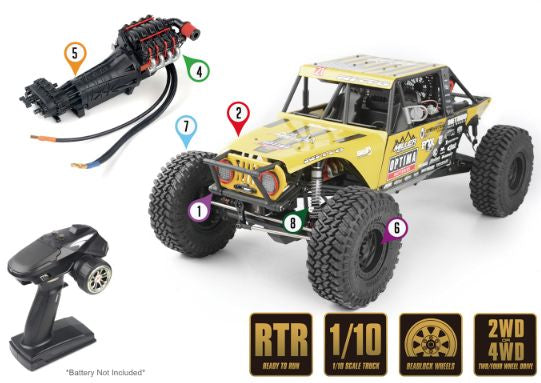

DRIVETRAIN
The functional scale Transmission with Transfer Case and scale V8 Crate Engine Housing elevate this Rock Racer to an unmatched realistic level!
With a 2-speed transmission, switching from crawling over rocky terrain to racing across flatlands is quick at the push of a button.
The V8 Crate Engine Housing enhances the aesthetics and delivers next-level detail! The design is a 1/10 scale replica of its full-size counterpart!
High-clearance axles with an offset front differential are made from durable materials and designed with rock racing in mind.
The driveshafts deliver impressive driveline angles while possessing durability during off-road adventures.
SUSPENSION
The front suspension has a traditional 4-link, while the rear sports a trailing arm setup with sway bars at the front and rear.
These aluminum oil-filled shocks with adjustable dual spring rates are primed for rock racing, striking the perfect harmony between flexibility and stability!
The Chassis is an injection molded design modeled after Erick Miller's proven and renowned Rock Racer.
2-piece Beadlock Wheels are made from durable material, ensuring they can withstand the harshest terrains, and are scale recreations of the 1:1 set.
The 2.2" Grappler scale tires have optimal grip and durability for excellent off-road traction and performance!
DETAILS
The interior features a crafted to-scale detailed dashboard complete with GPS, radio comm, and other captivating features!
The molded radiator and fan shrouds capture the details found on this model and recreate the look of a genuine rock racer!
The aluminum fuel cells protect electronic components while concealing them for added realism!
Emphasizing the exterior design, the race-style Rear Light Bar adds more replicated detail from the full-size model.
ELECTRONICS
The 6-channel radio/receiver has an all-new modern design that upgrades your control experience while trailing!
Enjoy exceptional performance while rock racing with the 1200KV Sensorless Brushless Motor!
The 2-3s 360 Amp ESC stands ready to supply the constant power and energy to push through many off-road challenges!
The Servo has the torque and performance to conquer demanding tasks and ensure an exciting rock racing experience.
3 Shift servos come pre-installed to control the 2-speed transmission and front/rear selectable differential lockers.
What's Included:
- 1x RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR
Replacements Parts:
- Lexan Body Panel Set for Miller Motorsports Pro Rock Racer (Z-B0269)
- Plastic Interior/Exterior Parts for Miller Motorsports Pro Rock Racer (Z-B0270)
- Plastic Chassis Set for Miller Motorsports Pro Rock Racer (Z-C0064)
- Front shocks for RC4WD Miller Motorsports Pro Rock Racer (Z-D0084)
- Rear shocks for RC4WD Miller Motorsports Pro Rock Racer (Z-D0085)
- Outcry II Extreme Speed Controller ESC (Z-E0135)
- Twister High Torque Metal Gear Digital Servo V2 (Z-E0136)
- Mini Shift Servo for Miller Motorsports Pro Rock Racer (Z-E0137)
- Transmission Gears for Miller Motorsports Pro Rock Racer (Z-G0086)
- Transfer Case Gears for RC4WD Miller Motorsports Pro Rock Racer (Z-G0087)
- Differential Assembly for Miller Motorsports Pro Rock Racer (Z-G0088)
- Radio and Receiver for Miller Motorsports Pro Rock Racer (Z-R0013)
- RC4WD AA Batteries (Z-S1718)
- Transmission Shifting Parts for Miller Motorsports Pro Rock Racer (Z-S2200)
- Transfer Case Shifting Parts for Miller Motorsports Pro Rock Racer (Z-S2201)
- Axle Shifting Parts for Miller Motorsports Pro Rock Racer (Z-S2202)
- XVD Universal Set for Miller Motorsports Pro Rock Racer (Z-S2203)
- Plastic Front Axle Housing for Miller Motorsports Pro Rock Racer (Z-S2204)
- Steel Rear Axle Shafts for Miller Motorsports Pro Rock Racer (Z-S2205)
- Plastic Rear Axle Housing for Miller Motorsports Pro Rock Racer (Z-S2206)
- Replacement Shock Shafts for RC4WD Miller Motorsports Pro Rock Racer (Z-S2207)
- Steel Driveshafts for Miller Motorsports Pro Rock Racer RTR (Z-S2208)
- Center Steel Driveshaft Assembly for Miller Motorsports Pro Rock Racer RTR (Z-S2209)
- Front and Rear Sway Bars for Miller Motorsports Pro Rock Racer (Z-S2210)
- Plastic Straight Rod Ends for Miller Motorsports Pro Rock Racer (Z-S2211)
- Plastic Bent Rod Ends for Miller Motorsports Pro Rock Racer (Z-S2212)
- Link Mounts for Miller Motorsports Pro Rock Racer (Z-S2213)
- Suspension Links for Miller Motorsports Pro Rock Racer (Z-S2214)
- Rear Light Assembly for Miller Motorsports Pro Rock Racer (Z-S2215)
- Plastic Crate Engine Housing Assembly for Miller Motorsports Pro Rock Racer (Z-S2216)
- Transmission and Transfer Case Plastic Housing Assembly for Miller Motorsports Pro Rock Racer (Z-S2217)
- Steering Link Set for Miller Motorsports Pro Rock Racer (Z-S2218)
- Faux Fuel Cell for Miller Motorsports Pro Rock Racer (Z-S2219)
- RC4WD Grappler 2.2" Scale Tires (Z-T0224)
- Rock Crawler 2.2" Plastic Beadlock Wheels (Z-W0351)
Optional Parts:
- RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022)
- High Torque Metal Gear Digital Servo (Z-E0035)
- RC4WD KC HiLiTES KC Light Set V2 (Z-E0036)
- RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
- RC4WD 1/10 Baja Designs S8 LED Light Bar (100mm) (Z-E0064)
- RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
- RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm) (Z-E0076)
- RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
- RC4WD ARB Intensity LED Light Set (Z-E0112)
- Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
- RC4WD KC HiLiTES Rectangle Lights with Covers(Z-E0132)
- Aluminum Steering Knuckles for Miller Motorsports Axle (Z-S0422)
- RC4WD Aluminum C Hubs for Miller Motorsports Axle (Z-S0425)
