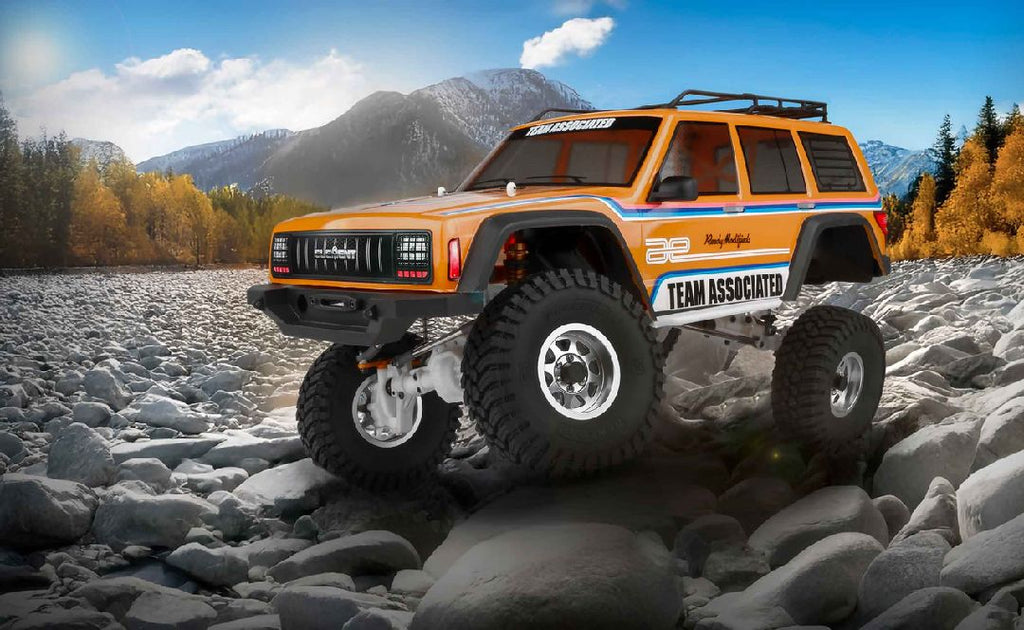

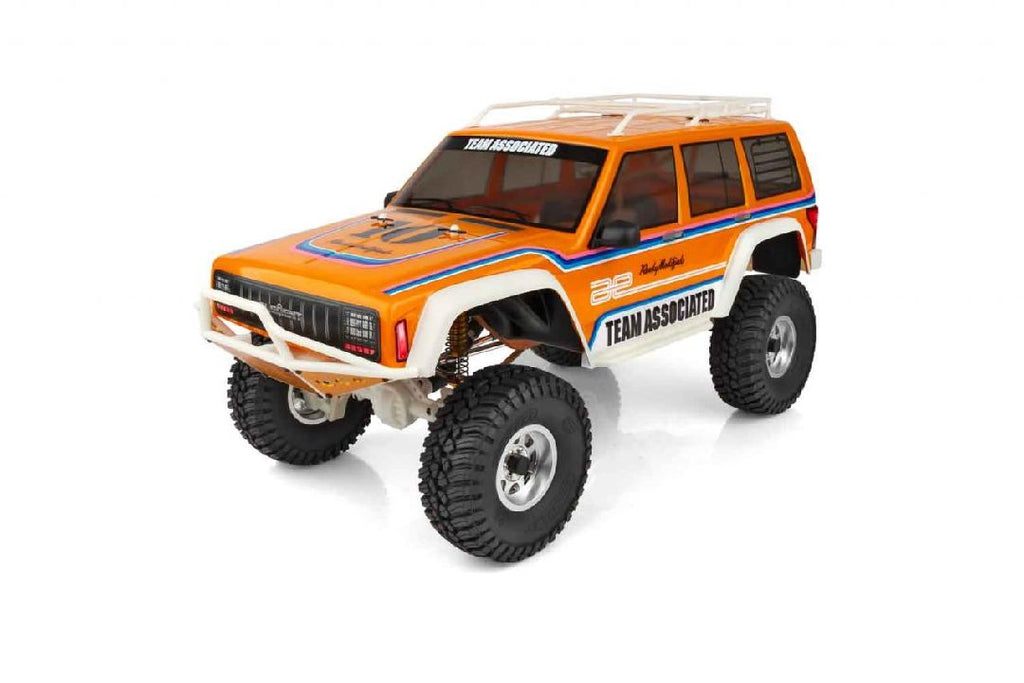

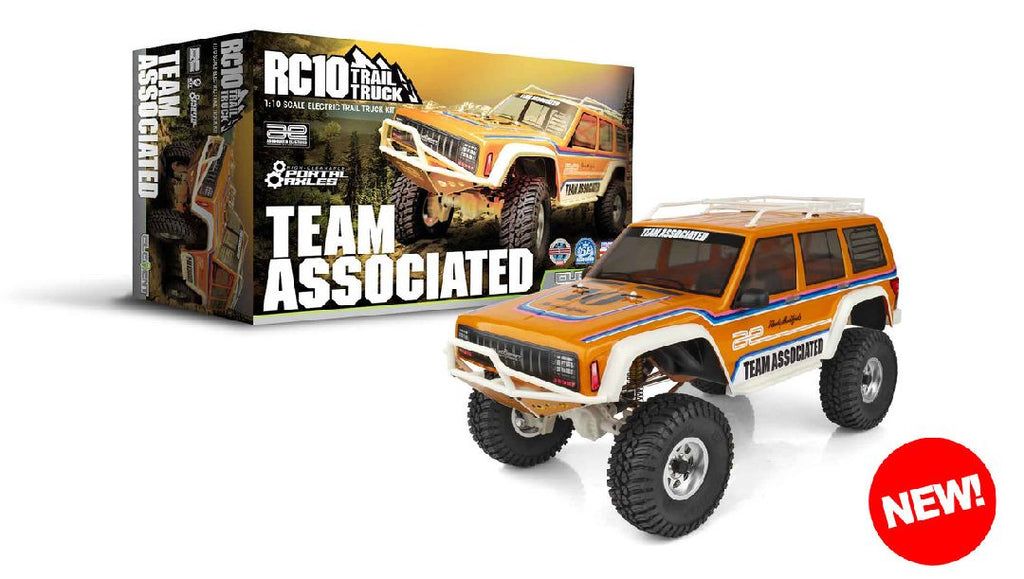

Team Associated 1/10 RC10 Trail Truck, 4x4 Portal Kit
At the heart of the RC10 Trail Truck Portal Kit is the revolutionary Stealth® X gearbox. Although it looks like a conventional 3-gear transmission on the outside, the inside offers advanced performance. The Stealth® X allows adjustment of the rear drive ratio independently of the front with three settings: stock (5.7% front overdrive), option 1 (1:1 drive ratio, sold separately), and option 2 (11.83% front overdrive). Power is delivered through 3-piece telescopic driveshafts with an extruded aluminum center, universal front axles, and hardened steel ring and pinion gears—providing efficient and durable drivetrain performance.
The RC10 Trail Truck Portal Kit also includes new high-clearance portal axles with all-metal gears, ball bearings, and an enlarged bearing pocket for a more robust inner input bearing. With nearly an inch more ground clearance than standard axles, these are ideal for rugged trails and the Enduro platform.
Features
- NEW high-clearance portal axles
- CMS (Chassis Mounted Servo)
- Adjustable front track bar
- Universal front drive axles
- Gold colored stamped steel frame rails
- 12mm wheel hexes
- Adjustable front bumper mount
- Two battery boxes
- Gold anodized aluminum motor plate
- Adjustable body posts
- Optimized ball cups for improved axle articulation
- Adjustable rear shock tower positions
- Telescopic driveshafts (front and rear)
- Extruded aluminum driveshaft splines
- Splined front axle with adjustable caster
- All-metal gears in axles
- Upgraded inner axle input bearing
- Machined steel top shaft
- Steel servo horn
- Heavy-duty 5mm steel links
- Metal ball bearings included
- RC10 Trail Truck body in high-strength polycarbonate
- Polycarbonate inner fenders
- Single-piece body with roof rack
- Clear windows
- Adjustable molded front and rear bumpers
- Realistic scale styling

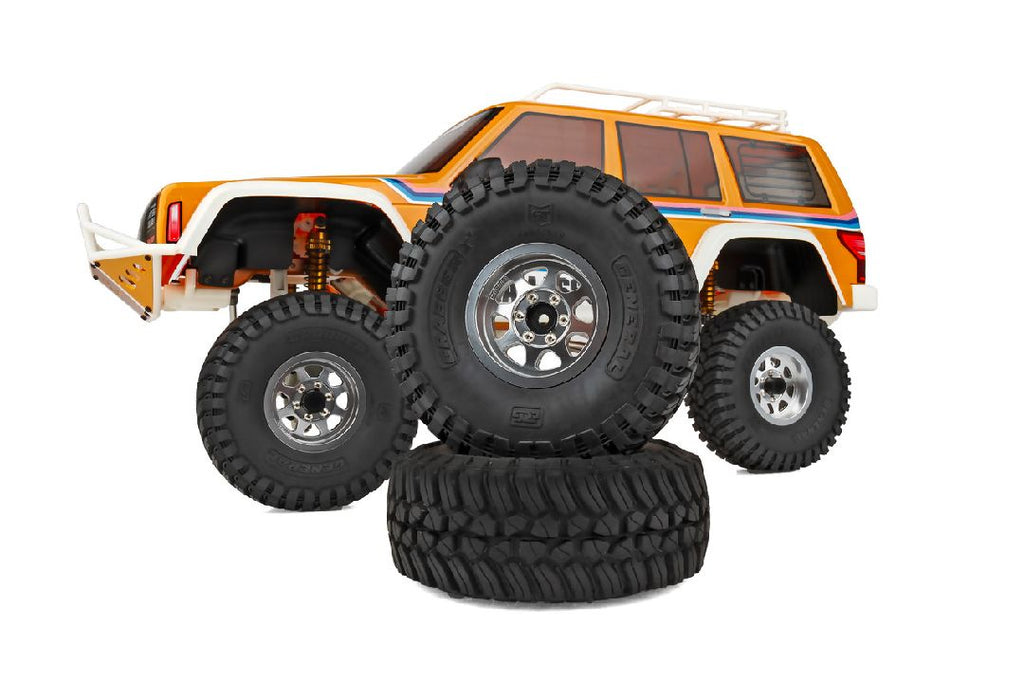

- Licensed 1.9” x 4.65” General Grabber™ X3 tires
- Licensed 1.9” Method 701 Trail Series beadlock wheels
